LED LIGHTING

2002 - 2006 Dodge Ram 9007 LED Kit Install

For a long time it was known that the only way to do a plug and play lighting upgrade on the 2002 – 2006 Dodge Ram was to either use higher power halogen bulbs, or an HID kit with a bunch of extra parts like resistors, a relay harness and capacitors. Because of this every time I heard about someone working on one I would get scared and not even want to help with it – it is an AWFUL install! See the link here for a quick glance at the installation process.

Now with the invention of LED bulb kits and CANBUS modules for them, we decided to give this difficult vehicle a shot to see if we could install LED bulb kit bulbs easier in a 2003 Dodge Ram with 9007 bulbs. Doing this install (once wired properly) proved to be a truly plug and play experience with no flickering and no “LAMP OUT” warning on the dash!

img_20150115_174724629_hdr
Using a GTR Lighting LED bulb Kit and the matching CANBUS module we were able to get LED bulbs installed pretty easily!
This particular truck was dated September of 2003 and used 9007 bulbs.

The first step was to get the new LED bulbs to actually fit inside the housing! Because the base of the bulb that holds the fan and heat sink is so much larger than the original bulb we had to use a bench grinder and shave about .25 inches off of the gray plastic retaining ring to allow everything to seat correctly. This took a few minutes and just took a little off at a time, tested it and kept doing that until it all fit together nicely.

img_20150115_1743207231
The LED bulb comes apart. There’s the bulb adapter that comes off and is secured to the housing by the gray plastic retaining ring, and the entire bulb assembly. We had to modify the plastic retainer before the new LED bulb would fit in place like the original.
img_20150115_173436859

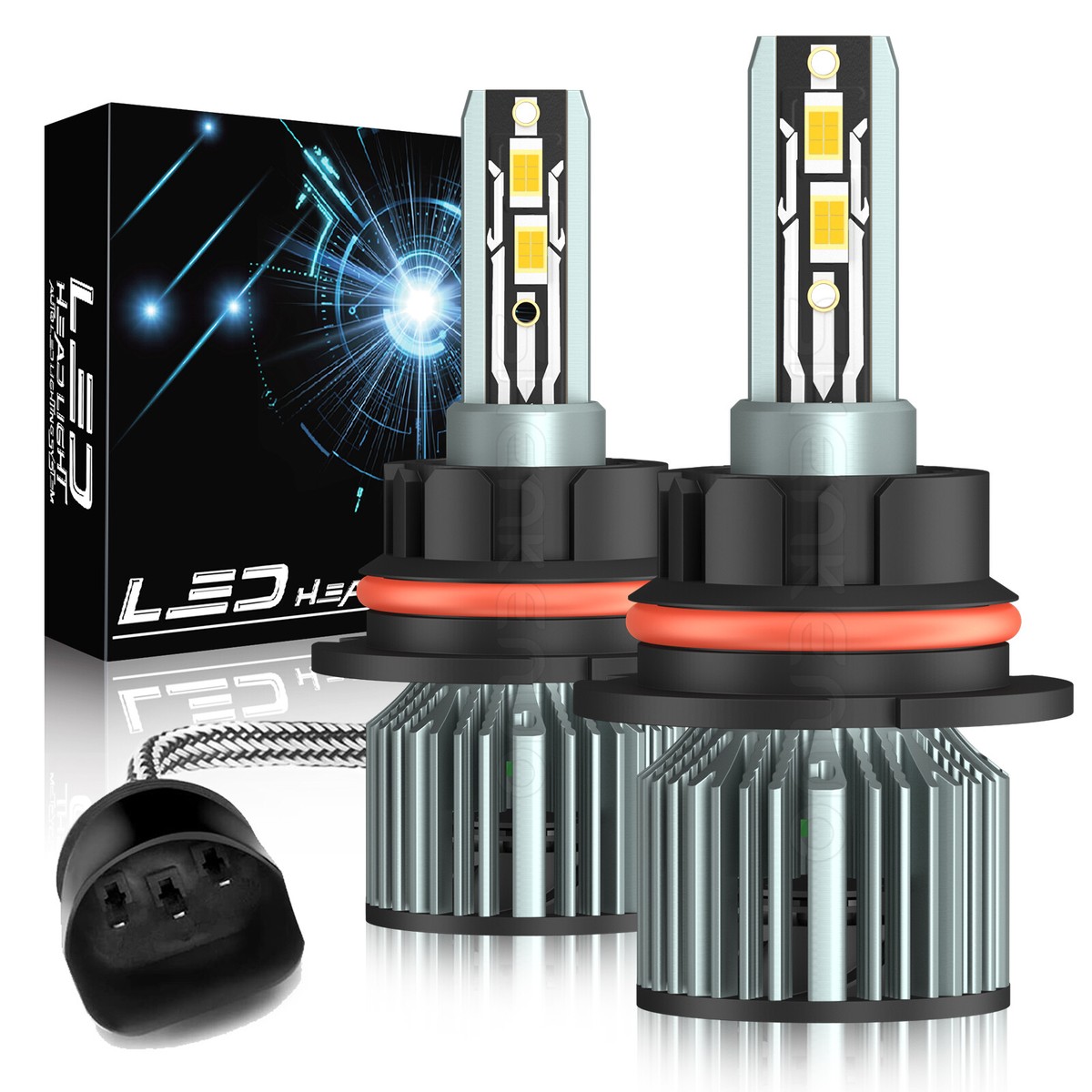

The 9007 LED bulb kit bulbs are much larger on the back side than the original 9007 halogen bulbs.

After getting the bulbs to seat properly in the housing we took the GTR Lighting CANBUS module for 9007 out of the packaging and hooked it up straight away and the capacitor inside the module popped! The module actually exploded!! I’m not kidding – a little pop, some wet stuff came out and the little thing stunk to high heaven and smoked for a second. This wasn’t all too surprising though since when you hook a capacitor up backwards it will explode. That’s exactly what happened – the capacitor inside was wired wrong for this truck and exploded. So, after that excitement we took a new set of 9007 CANBUS modules and re-wired them so that everything looked like this:



9007

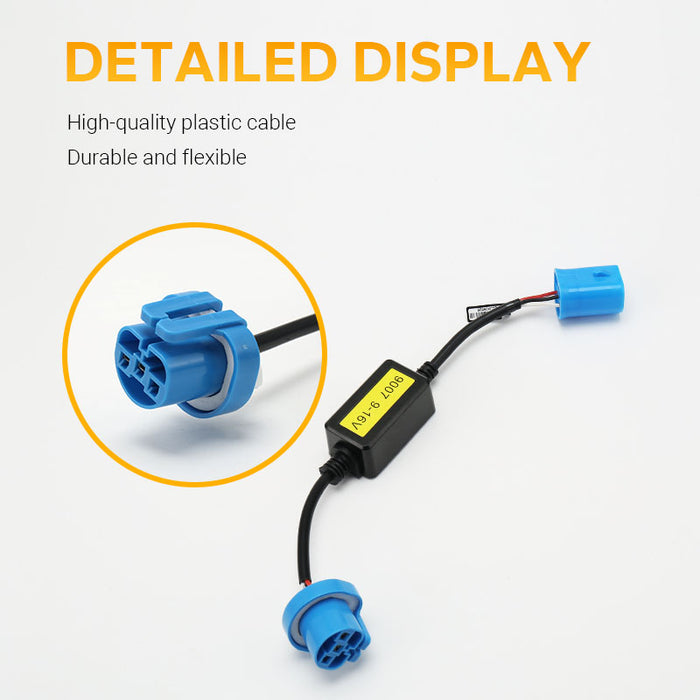

This is how the bulb was installed: The CANBUS module is between the bulb and the vehicle harness.
img_20150115_173519926
This is the connector going from the 9007 LED bulb into the 9007 CANBUS module. These wires were correct from GTR Lighting.
img_20150115_173448853
This is the connector back side of the 9007 LED CANBUS module input. We had to change these wires around to make them work.
img_20150115_173454332
This is the connector back side of the 9007 LED CANBUS module output that plugs into the factory wiring. We had to change these wires around to make them work.
img_20150115_173512194
Just for reference sake, here’s what the back side of the original factory connector looked like.



So, all in all we got it to work after thinking about it and how to re-wire the CANBUS modules, and they’re definitely brighter than the stock headlights. Because they are LED they should be more reliable also.

img_20150115_173917598
Here you can see the new GTR Lighting LED bulb in the housing.
img_20150115_174740540
Here’s a final install shot showing the new 9007 LED bulbs from GTR Lighting in high beam mode.
