The 1984–1986 Chevy Corvette C4 came from the factory with old-school H6054 sealed beam halogen headlights. Unlike modern housings, you cannot open them and replace a bulb. Instead, you must replace the entire glass assembly when it burns out.

Many owners try to modernize the lighting with composite 5×7-inch housings and HID conversion kits. At first, that sounds like a smart upgrade. However, the C4’s pop-up system creates a unique challenge.

Let’s break it down.

---

Why HID Kits Don’t Work Well on the C4

The C4 Corvette uses a flip-up headlight assembly that rotates nearly 180 degrees when activated. Because of this design, space inside the bucket is extremely limited.

HID systems require:

• External ballasts

• Additional wiring harnesses

• Bulb igniters

As a result, all that extra hardware crowds the headlight bucket. The wiring often interferes with the rotation mechanism. Installation becomes complicated. In some cases, it causes reliability issues.

While you can install an HID kit, it involves a lot of wiring. Moreover, you risk binding or damaging the pop-up mechanism. Therefore, most enthusiasts look for a cleaner solution.

---

The Factory Setup: H6054 Sealed Beam

The C4 Corvette uses an H6054 5×7-inch glass sealed beam housed inside the flip-up assembly.

This design is simple and durable. However, it produces dim, yellow light by today’s standards. Night visibility suffers, especially on dark roads. Furthermore, the beam pattern lacks width and clarity compared to modern LED optics.

If you want better performance without compromising the pop-up function, you need a true sealed-beam replacement.

---

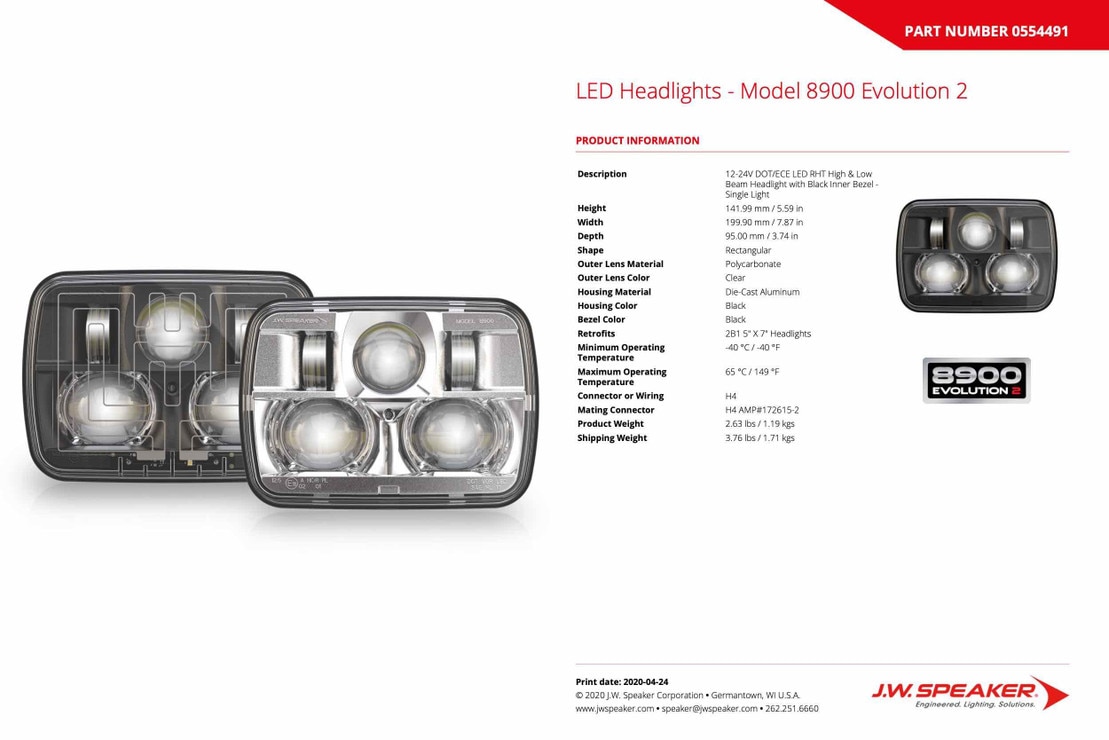

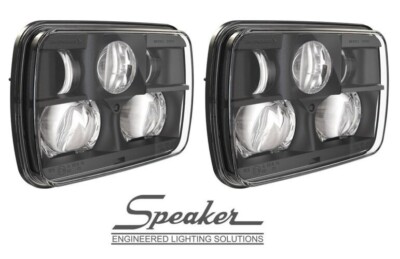

The Best Upgrade: JW Speaker 8900 Evolution

The best LED upgrade for the C4 Corvette is the JW Speaker 8900 Evolution.

Unlike HID kits, this unit replaces the entire sealed beam housing. It installs just like the factory light. No external ballasts. No bulky harnesses. No interference with the flip-up mechanism.

Why It Works So Well

First, it delivers nearly three times the light output of the original halogen unit. Additionally, it produces a wider and whiter beam pattern. That means better peripheral visibility and stronger down-road projection.

Second, it maintains a true 5×7-inch sealed beam footprint. Because of that, it fits directly into the factory bucket. The install is fully plug-and-play on the 1984–1986 Corvette.

Finally, it carries a 5-year warranty and is proudly made in the USA.

---

Key Features of the 8900 Evolution

• Available in black or chrome inner bezel

• Combined high and low beam functions

• 30% increase in high beam intensity (newer design)

• Lower power consumption than halogen

• Die-cast aluminum housing for durability

• Hard-coated polycarbonate lens

• Engineered optics for a controlled beam pattern

Moreover, this model has proven itself in the heavy-duty trucking market. That real-world durability translates perfectly to a sports car like the C4.

---

Final Thoughts

If you want modern lighting without complicating your pop-up system, skip the HID conversion. Instead, choose a full LED sealed beam replacement.

The JW Speaker 8900 Evolution keeps the install simple. At the same time, it dramatically improves light output, beam control, and reliability.

For more details about the JW Speaker 8900 LED headlight for your Corvette, watch the video below. It covers this model and compares it to other options so you can make the right choice for your build.

---
